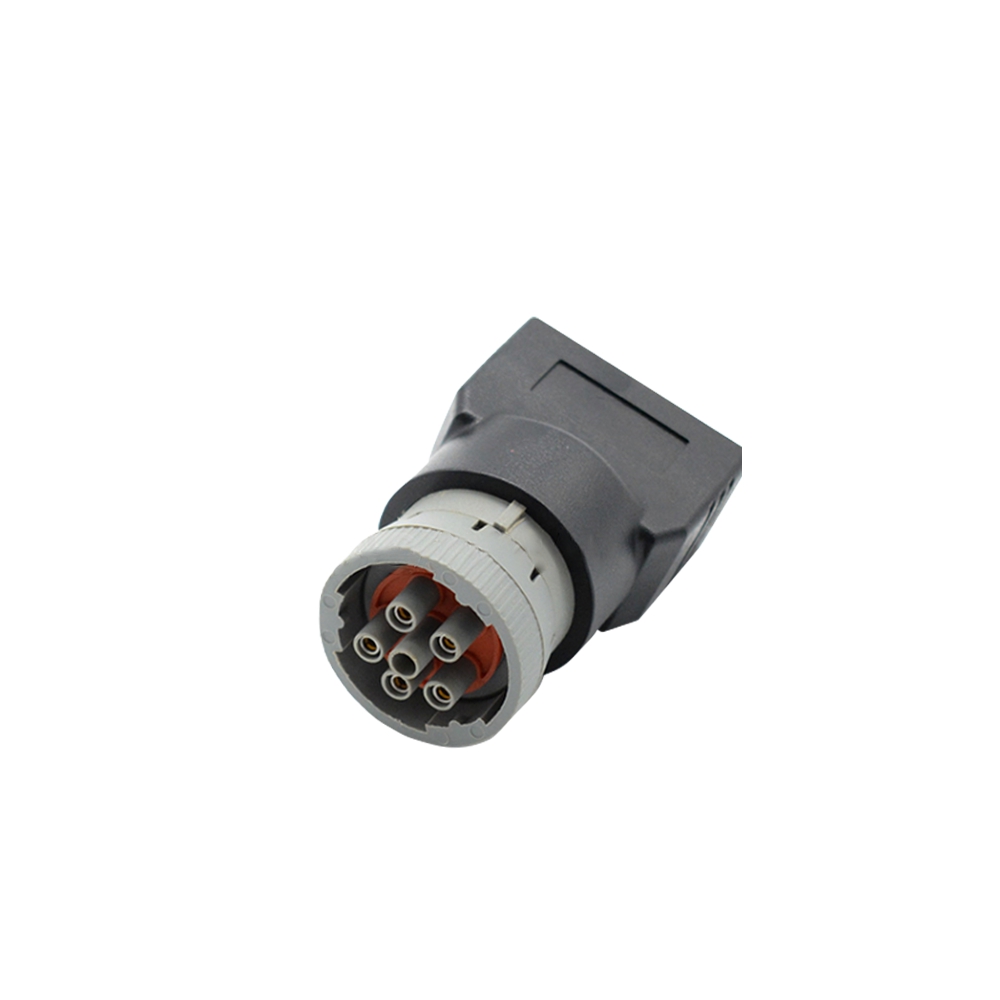

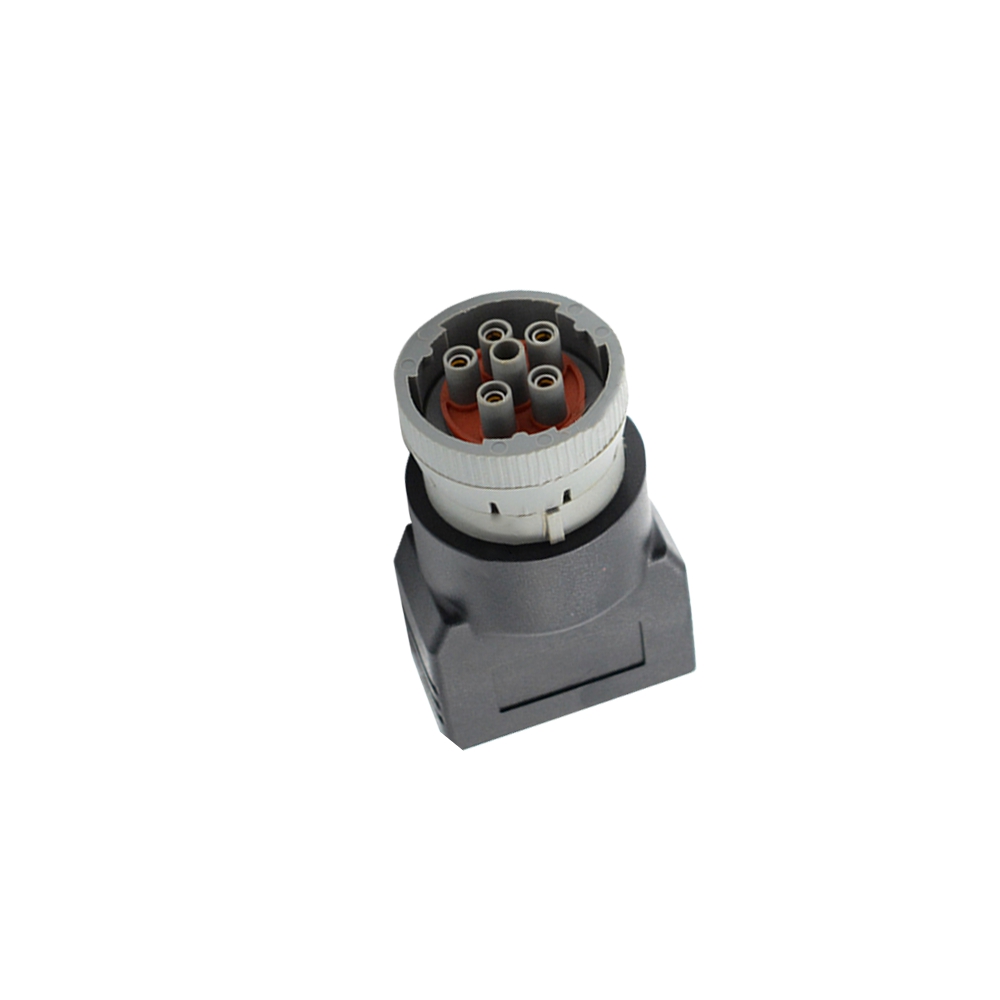

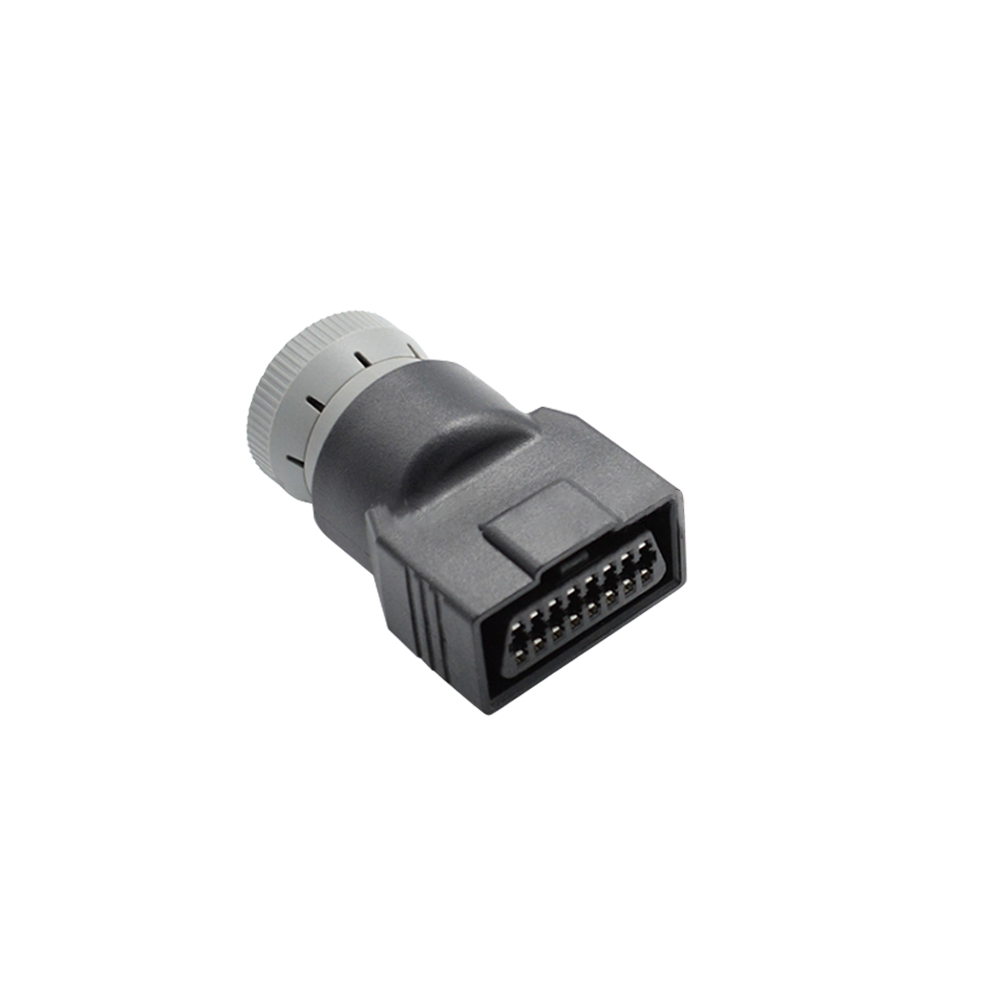

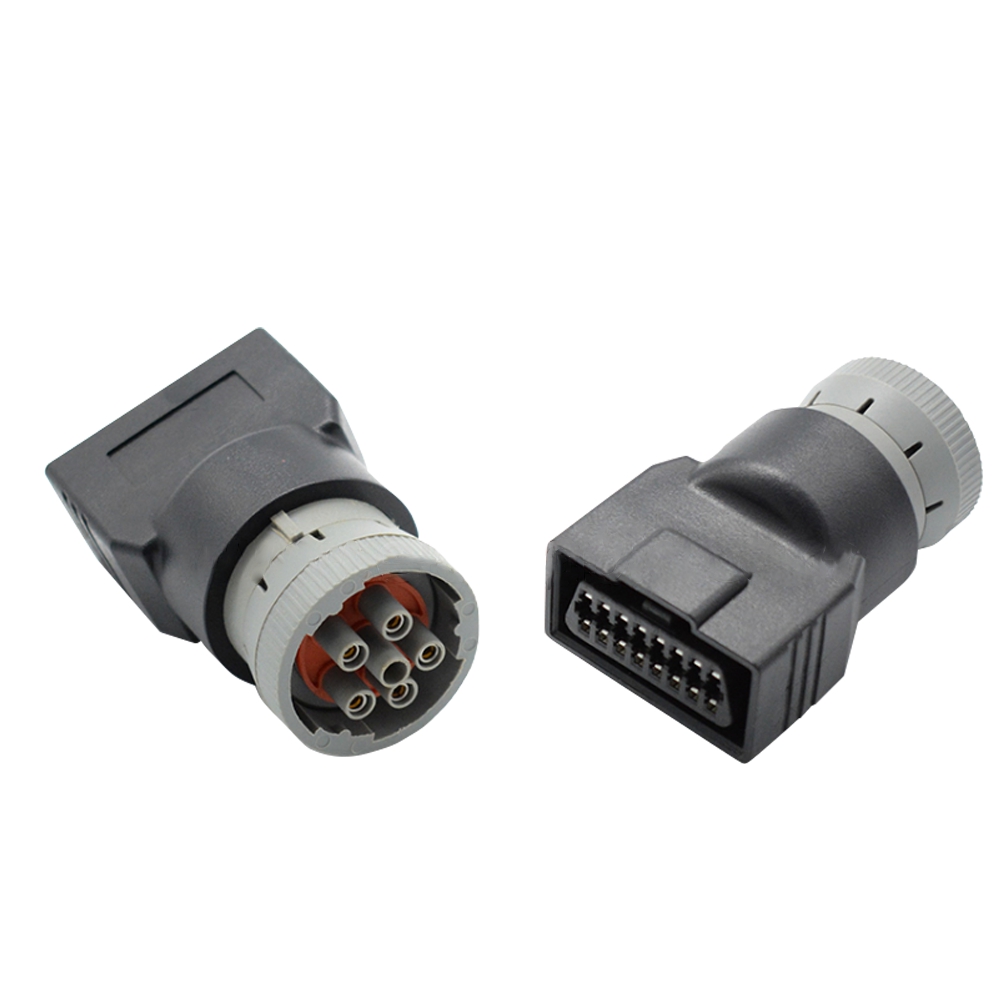

  • 9 pin J 1939 male to j 1962 OBD 2 OBDII 16 pin male adapter
  • 9 pin J 1939 male to j 1962 OBD 2 OBDII 16 pin male adapter
  • 9 pin J 1939 male to j 1962 OBD 2 OBDII 16 pin male adapter
  • 9 pin J 1939 male to j 1962 OBD 2 OBDII 16 pin male adapter
  • 9 pin J 1939 male to j 1962 OBD 2 OBDII 16 pin male adapter
9 pin J 1939 male to j 1962 OBD 2 OBDII 16 pin male adapter9 pin J 1939 male to j 1962 OBD 2 OBDII 16 pin male adapter9 pin J 1939 male to j 1962 OBD 2 OBDII 16 pin male adapter9 pin J 1939 male to j 1962 OBD 2 OBDII 16 pin male adapter9 pin J 1939 male to j 1962 OBD 2 OBDII 16 pin male adapter

9 pin J 1939 male to j 1962 OBD 2 OBDII 16 pin male adapter

  • Product description：9 pin J1939 male to j1962 OBD 2 OBDII 16 pin male adapter
  • Inquiry

9 pin J 1939 male to j 1962 OBD 2 OBDII 16 pin male adapter

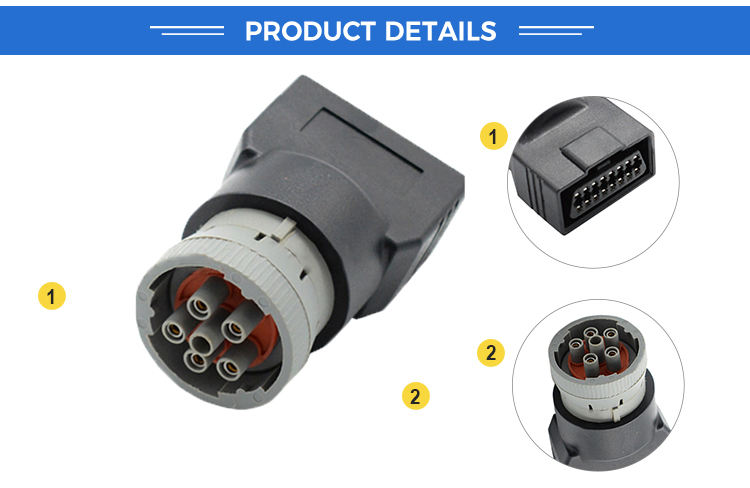

Products Description
Specification
J1939 male plug
standard,12V/24V
Pins ofJ1939 male plug
Copper,nickel-plated or gold-plated
Overmold of J1939 male plug
slim design, right angle 90-degree
J1939 female connector
standard
Cable shape
flat,thin
Wire
26AWG, pure copper
Material of overmolded part
PVC
Pin assignment or pin out
customized
Cable length
customized
Pins or terminals
copper, nickel-plated or gold-plated
Contact Resistance
3 ohm max.
Insulation Resistance
5M ohm min.
Working Temperature
−25℃ ~ +85℃
Testing
100% open, short and mis-wire testing
Testing Voltage
DC300V 5M ohm/10ms
Warranty
1 year

Our Products Advantage

1）Accept Flexible Qty.

2）Quick proofing confirmation

3）Normal use in harsh environment
