DIN 40050-9 Cordset M12 to RJ45 CAT6A waterproof cable assemblies

Product Description



Molex's double-ended M12 to RJ45 CAT6 cordsets enable multiple devices to communicate over Ethernet technology

molex'sdouble-ended M12 to RJ45 CAT6A cordsets from the M12

CAT6A series are for high-speed data transmission suited to transmit up to 10 Gbit Ethernet data.

The design covers the need for POE transmission and keeps the benefit of sealing and form factor coming from the M12 standard.

Molex M12 SERIES Connector exceed the requirements prescribed by IP 67 according IEC 60529 and DIN 40050-9 standards and has its application in the automotive, agriculture and industrial machinery

Features:
•IP rating: IP20, IP67
•Cable diameter: 6.40 mm (0.252")
•Lengths: 1.64’, 6.56’, 9.84’, 16.40’, and 49.21’
•Cable operating temperatures of -40°C to +70°C
•Maximum per contact 0.5 A and 48 V maximum

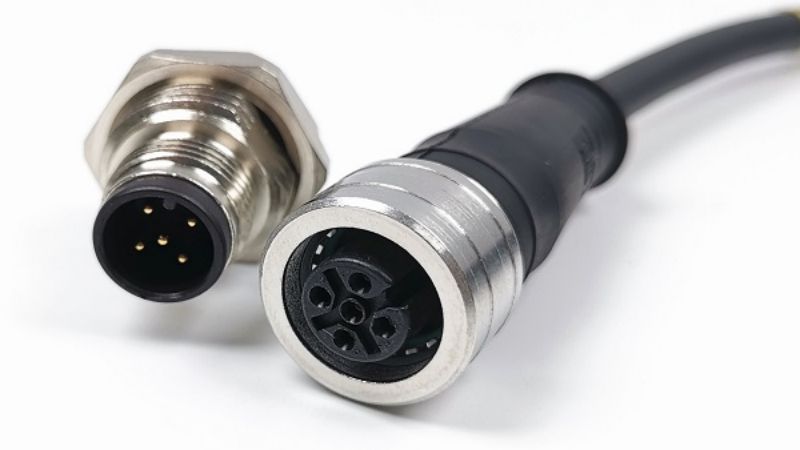

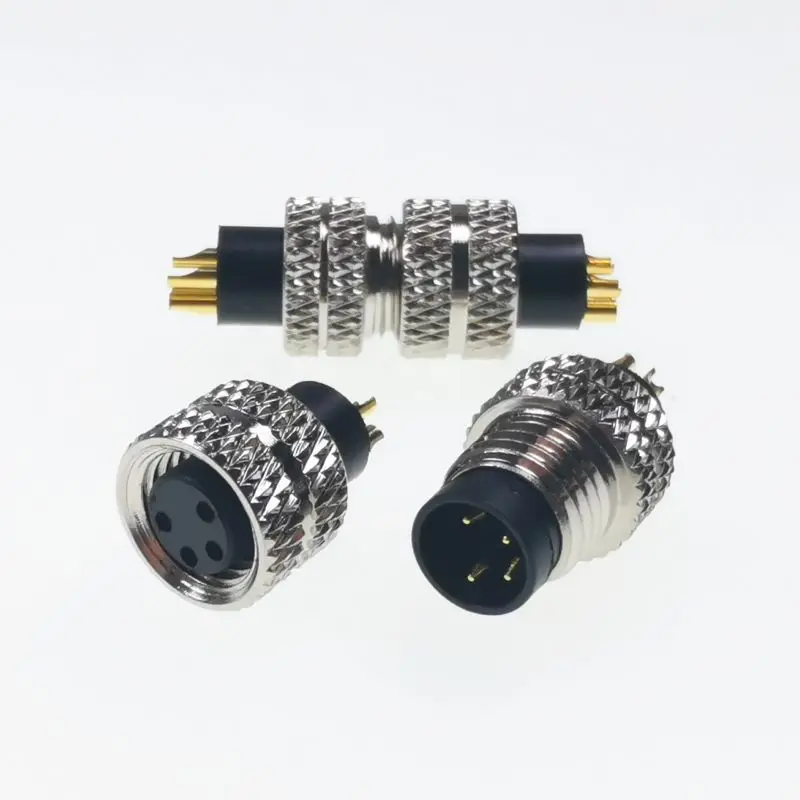

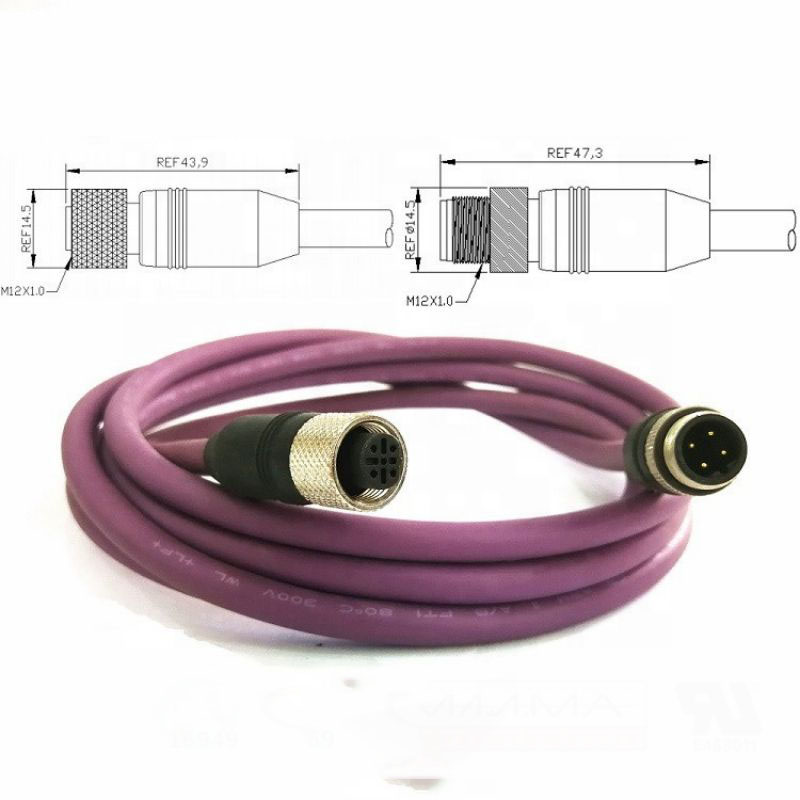

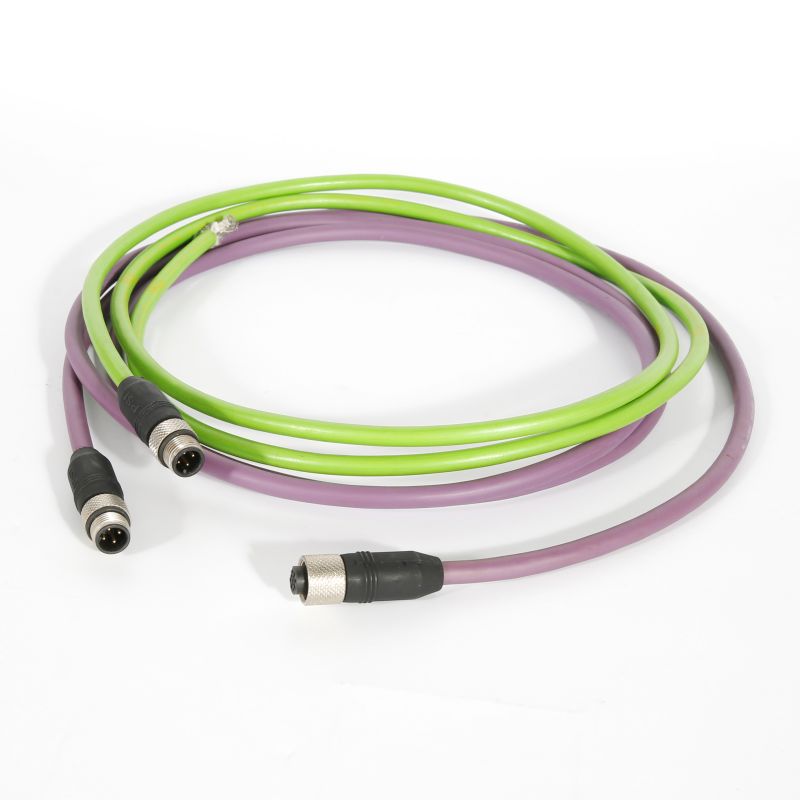

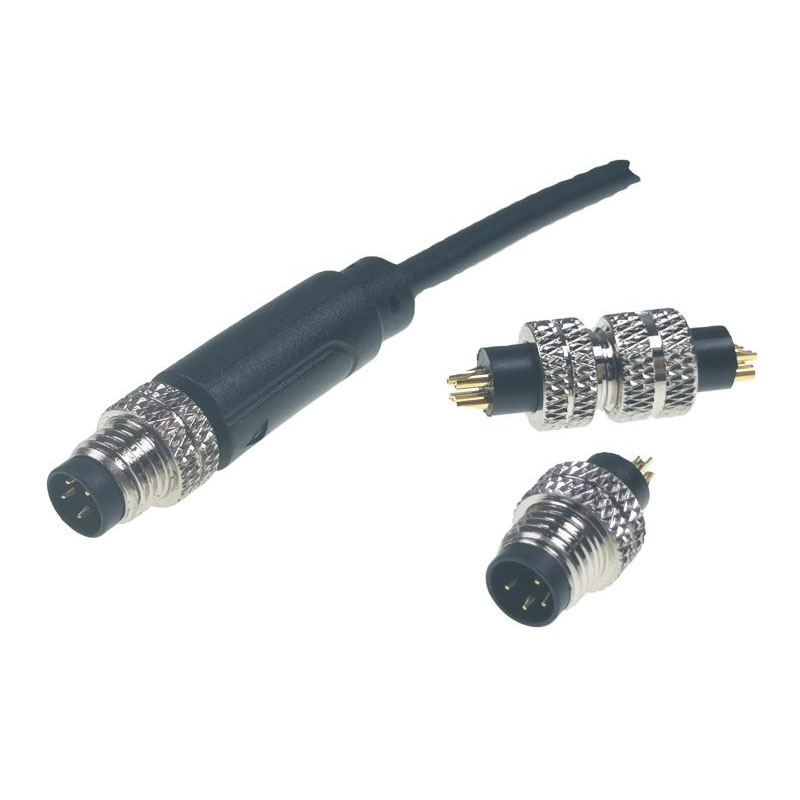

DIN 40050-9 Cordset M12 to RJ45 CAT6A waterproof cable assembliesDIN 40050-9 Cordset M12 to RJ45 CAT6A waterproof cable assembliesDIN 40050-9 Cordset M12 to RJ45 CAT6A waterproof cable assembliesDIN 40050-9 Cordset M12 to RJ45 CAT6A waterproof cable assembliesDIN 40050-9 Cordset M12 to RJ45 CAT6A waterproof cable assembliesDIN 40050-9 Cordset M12 to RJ45 CAT6A waterproof cable assembliesDIN 40050-9 Cordset M12 to RJ45 CAT6A waterproof cable assemblies


Applications:
•Commercial vehicles
•GPS
•Railways
•Telematics
•Defense
•High-speed video communication
•Vehicle open system architectures
•Industrial automation
•Automotive assembly lines
•Conveyor systems
•Food and beverage processing
•Robotics
•Vision system
