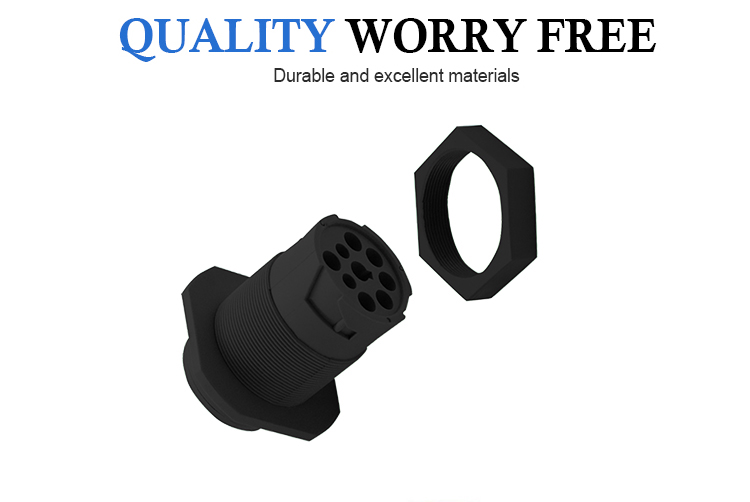

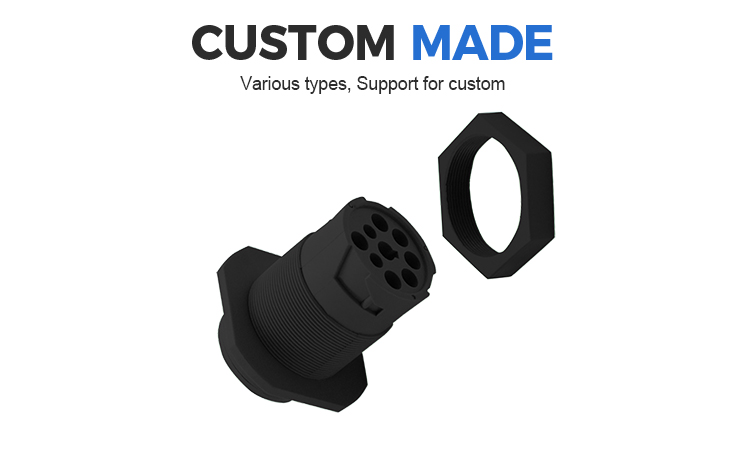

Male plug J 1939 pin connector PA 66 / fiberglass housing

Male plug J 1939 pin connector PA 66 / fiberglass housing

Male plug J 1939 pin connector PA 66 / fiberglass housing

Male plug J 1939 pin connector PA 66 / fiberglass housing

Male plug J 1939 pin connector PA 66 / fiberglass housing

Male plug J 1939 pin connector PA 66 / fiberglass housing

Product description：Male plug J1939 pin connector PA 66 / fiberglass housing
Inquiry

Male plug J 1939 pin connector PA 66 / fiberglass housing

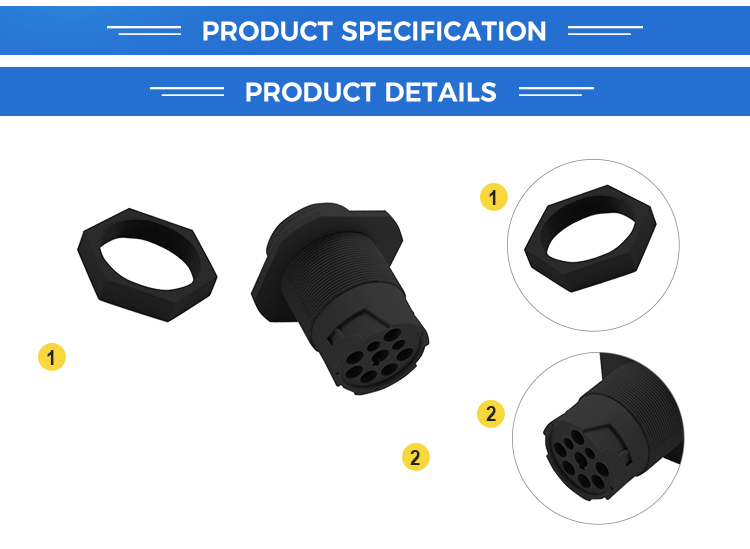

Products Description

Specification
J1939 male plug	standard,12V/24V
Pins ofJ1939 male plug	Copper,nickel-plated or gold-plated
Overmold of J1939 male plug	slim design, right angle 90-degree
J1939 female connector	standard
Cable shape	flat,thin
Wire	26AWG, pure copper
Material of overmolded part	PVC
Pin assignment or pin out	customized
Cable length	customized
Pins or terminals	copper, nickel-plated or gold-plated
Contact Resistance	3 ohm max.
Insulation Resistance	5M ohm min.
Working Temperature	−25℃ ~ +85℃
Testing	100% open, short and mis-wire testing
Testing Voltage	DC300V 5M ohm/10ms
Warranty	1 year

Our Products Advantage

1）Accept Flexible Qty.

2）Quick proofing confirmation

3）Normal use in harsh environment

Inquiry

PREVIOUS：High Performance 9 Pin Diagnostic Connector , Custom J1939 Connector NEXT：HDP26-18-14SE-CL20 J1939 Connector Hdp20 Kit 9-Pin J1939 AdaptersHDP26-18-14SE-CL20 J1939 Connector Hdp20 Kit 9-Pin J1939 Adapters

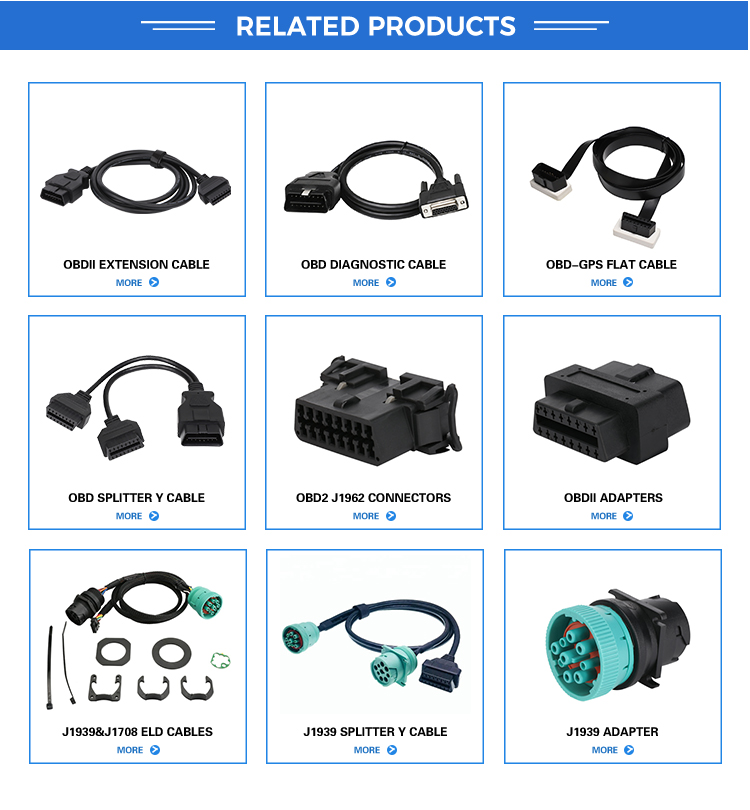

Related Products
