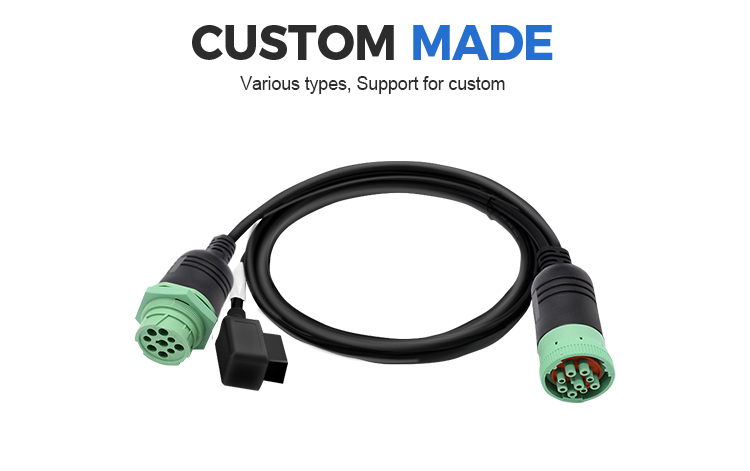

Right angle green 9-pin type 2 cable for truck automatic diagnostic tool

  • Product description：Right angle green 9-pin type 2 cable for truck automatic diagnostic tool
  • Inquiry

Right angle green 9-pin type 2 cable for truck automatic diagnostic tool

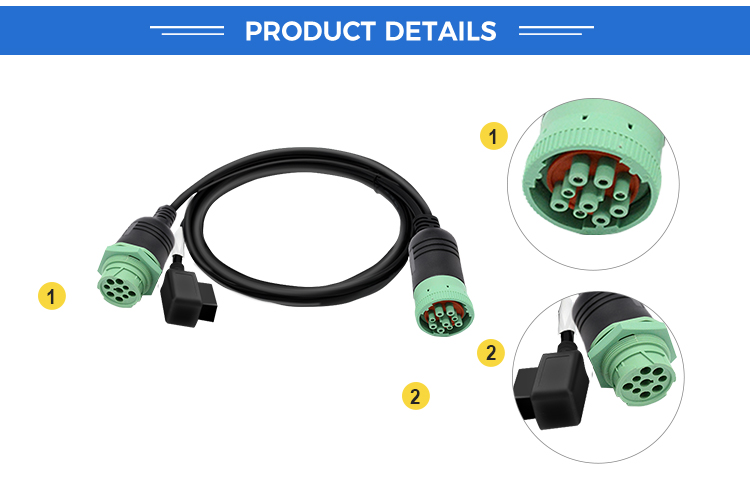

Products Description
Specification
J1939 male plug
standard,12V/24V
Pins of J1939 male plug
Copper,nickel-plated or gold-plated
Overmold ofJ1939male plug
straight
J1939 female connector
standard
Cable shape
Round
Wire
26AWG, pure copper
Material of overmolded part
PVC
Pin assignment or pin out
customized
Cable length
customized
Pins or terminals
copper, nickel-plated or gold-plated
Contact Resistance
3 ohm max.
Insulation Resistance
5M ohm min.
Working Temperature
−25℃ ~ +85℃
Testing
100% open, short and mis-wire testing
Testing Voltage
DC300V 5M ohm/10ms
Warranty
1 year

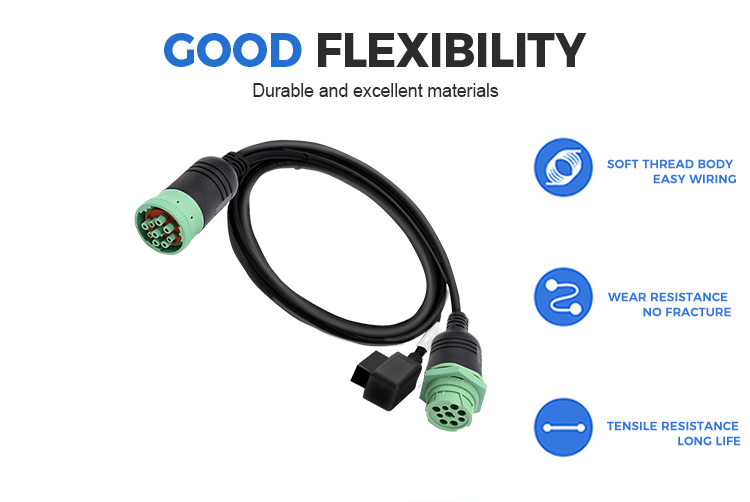

Our Products Advantage

1）Accept Flexible Qty.

2）Quick proofing confirmation

3）Normal use in harsh environment
