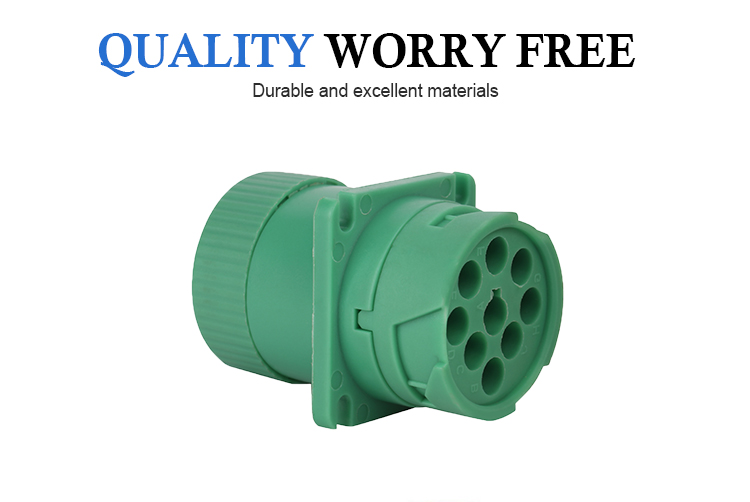

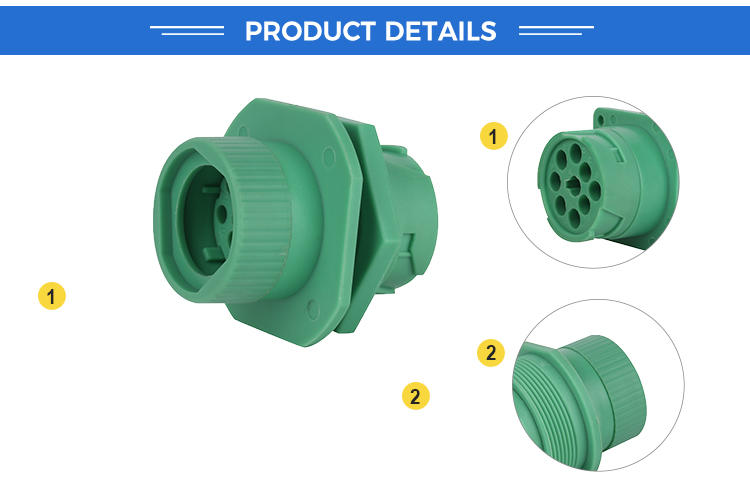

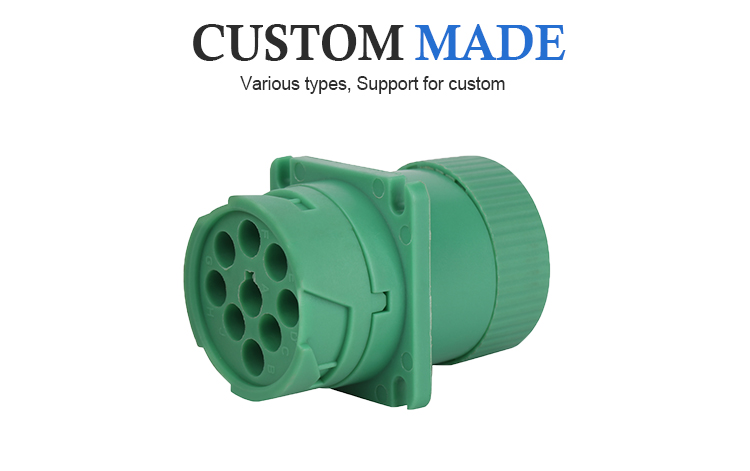

  • Product description:Threaded 1-aminophenol J1939 pin connector, J1939 diagnostic connector
  • Inquiry

Threaded 1-aminophenol J 1939 pin connector, J 1939 diagnostic connector


Products Description
Specification
J1939 male plug
standard,12V/24V
Pins ofJ1939 male plug
Copper,nickel-plated or gold-plated
Overmold of J1939 male plug
slim design, right angle 90-degree
J1939 female connector
standard
Cable shape
flat,thin
Wire
26AWG, pure copper
Material of overmolded part
PVC
Pin assignment or pin out
customized
Cable length
customized
Pins or terminals
copper, nickel-plated or gold-plated
Contact Resistance
3 ohm max.
Insulation Resistance
5M ohm min.
Working Temperature
−25℃ ~ +85℃
Testing
100% open, short and mis-wire testing
Testing Voltage
DC300V 5M ohm/10ms
Warranty
1 year

Our Products Advantage

1)Accept Flexible Qty.

2)Quick proofing confirmation

3)Normal use in harsh environment
